Example C-8: Single Shape

In this example, a pre-defined structure is used to create a Boolean mask and then use that mask to manipulate the part. The shape is a circle, which means that the result will be identical to that of Example C-1, but the procedure is more straightforward.

This example paves the way for introducing shape arrays which is done in Example C-9.

First, a 2D part with a shape of 50×50 voxels is created with a base material of 1 and a voxel size of 0.02 units in all directions. The parameter log_debug is set to True for demonstration purposes.

Afterwards, an instance of the Circle class is created. The value of id is not important for single shapes, and the other parameters are all set to half of the real model size:

t = part.real_size[0] / 2
circle_obj = mask.shape.Circle(id=0, a=t, b=t, r=t)

Then, a mask is created using the instance’s func() method. Unlike Example C-1, no additional parameters are necessary:

circle_mask = mask.function.mask_from_function(part=part, func=circle_obj.func)

Afterwards, the Boolean mask is applied to the part with a value of 2. This means that the values of the elements selected by the mask are set to 2:

part.apply_mask(mask=circle_mask, value=2)

Finally, The part is exported to an Abaqus™ input file in 2D mode with CPE4R elements. The Non-Empty elements (which happens to be the whole model), are requested to be exported.

The code can be found in the examples folder of the main repository. It is also included below:

"""Script for Example C-8: Single Shape"""

from vcams import mask
from vcams.voxelpart import VoxelPart

# Create the part.
part = VoxelPart(size=(50, 50), base_material=1, voxel_size=(0.02, 0.02), name='Ex C-8 Single Shape',
                 description='A 2D square 50*50 part containing a single circular inclusion.', log_debug=True)

# Create an instance of the vcams.mask.shape.Circle class.
# All properties are defined when the object is created.
t = part.real_size[0] / 2
circle_obj = mask.shape.Circle(id=0, xc=t, yc=t, r=t)

# Create a Boolean mask based on the VoxelPart object.
# For the mask function use circle_obj.func. No other parameters are necessary.
circle_mask = mask.function.mask_from_function(part=part, func=circle_obj.func)

# Apply the Boolean mask to the part.
part.apply_mask(mask=circle_mask, value=2)

# Output the part.
part.output_abaqus_inp(file_name='ex_c8_single_shape',
                       elem_code='CPE4R', dim='2D',
                       material_elem_sets='Non-Empty')

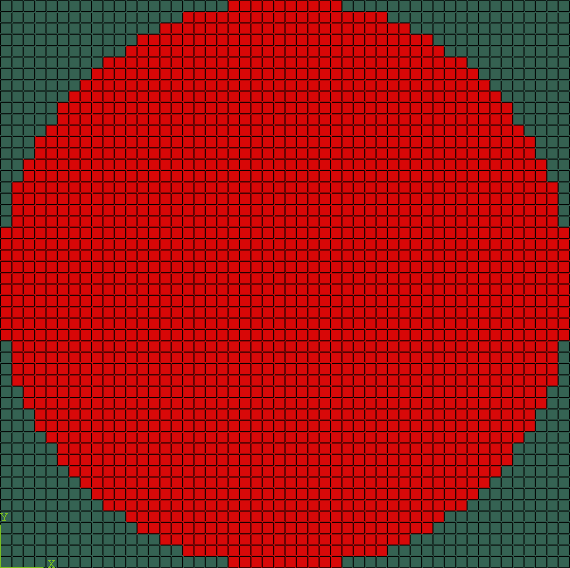

The final model looks like Fig. 23. Note that elements in different sets are shown in different colors.
